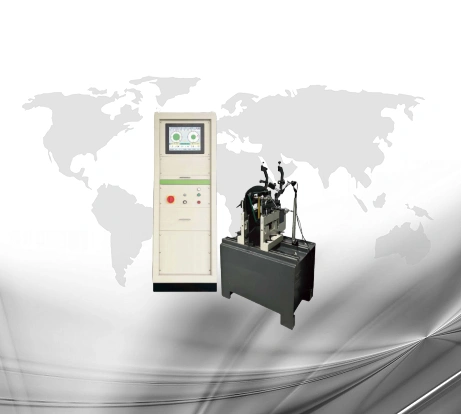

This machine is especially suitable to balancethe rotorsof small&medium motor,supercharge,auto air-conditioner and fan,as well as the spindle in smalltooling machine.
| Machine model | H2BK | |
| Maximum quality of artifacts | 40kg | |
| maximum；diameter of workpiece | Φ800mm | |
| Distancebewween wobearing supports of the workpiece journal | 80-630mm | |
| Journal diameter of workpiece | Standard roler support | φ8~φ50mm |
| Up to(optional) | Φ100mm | |
| Diameter rangen the diving poshon of bet | φ20-φ200mm | |
| Balancng speedfor crwen diametero100mm | 0~1540r/min | |
| Motor power | 0.75kW | |
| Minachieveable residual unbalanceEmar/per planes | 0.05g.mm/kg | |
| Unbalance reduction ratio URR | 95% | |
| Dimension(LxW×H) | 765×690×1190mm | |
