Centrifugal excitation mode, low mechanical noise
Four-point synchronous reverse, table uniformity is good
The amplitude is adjusted without order to meet the test requirements of different products
Chinese and English Windows standard control interface, can print reports, simple operation
Air bags with shock absorption (casters) do not require special foundation fixation

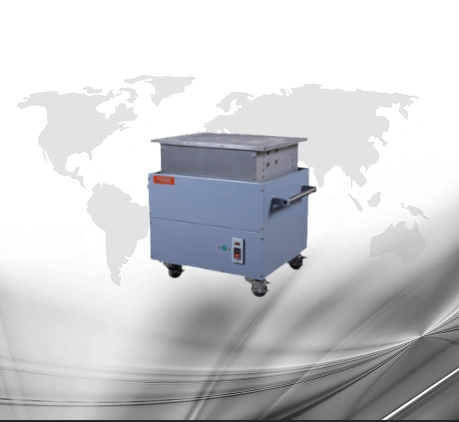

| Mechanical vibration testing machine | ||
| System Product Name | RV3000 | RV8000 |
| working platform（mm） | 500×600 | 1000×800 |
| frequency domain（Hz) | 5-100 | 10-60 |
| amplitude range
（mmp-p) |
0-3 | 0-2.6 |
| Acceleration range(G) | 0-11 | 0-11 |
| maximum load
（Kg) |
100 | 300 |
| control interface | charges these devices IBM PC Serial post Rs232 9P/USB pot | |
| test pattern | Fixed frequency, sweep frequency (line number/logarithm), multi-order random | |
| waveform | sine wave | |
| direction of vibration | vertical | |
| Power | AC220V/50Hz | |
| machine size(mm） | 750x550x690 | 1000x800x655 |
| Weight（Kg) | 250 | 500 |
