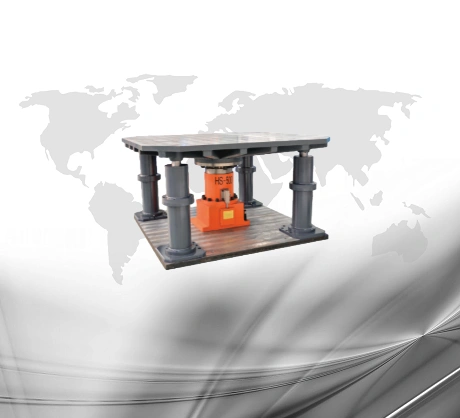

The vertical hydraulic vibration test bench is a kind of test bench that converts the energy of high-pressure liquid into the kinetic energy of the reciprocating motion of the actuator through the energy conversion and amplification device of the electro-hydraulic servo valve, which can be used to simulate the vibration suffered by automobiles and parts, various buildings and steel structures, aerospace mechanical and electrical products in the actual environment, so as to optimize the product structure and save costs.
| model
parameter |
SY70-1 | SY70-2.5 | SY70-5 | SY70-10 | SY70-15 | SY70-20 | SY70-40 | SY70-50 |
| maximum thrust(kN) | 10 | 25 | 50 | 100 | 150 | 200 | 400 | 500 |
| maximum load(kg) | 200 | 250 | 600 | 1200 | 1800 | 3000 | 8000 | 12000 |
| frequency range(kN) | 1~120 | 1~120 | 1~120 | 1~100 | 1~80 | 1~80 | 1~60 | 1~60 |
| maximum displacement(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 40 | 30 |
| maximum speed(m/s) | 0.4 | 0.4 | 0.4 | 0.35 | 0.35 | 0.3 | 0.2 | 0.17 |
| maximum acceleration(m/s²) | 30 | 50 | 50 | 50 | 50 | 40 | 30 | 25 |
| table size(mm) | 500×500 | 600×600 | 800×800 | 1000×1000 | 1200×1200 | 1500×1500 | 1800×1800 | 2000×2000 |
| consumed power(kW) | 11 | 18.5 | 37 | 55 | 74 | 74 | 110 | 110 |
| boundary dimension(L×W×H:mm) | 500×500×800 | 600×600×800 | 800×800×800 | 1000×1000×1200 | 1200×1200×1200 | 1500×1500×1200 | 1800×1800×1500 | 2000×2000×1500 |
| Power | Three-phase 380V, 50/60Hz | |||||||
| standard
|
GB/T2423 GJB150A | |||||||
| work environment | Temperature: 0~40℃, humidity: ≤80% (no condensation) | |||||||
| remark | Note Can be customized according to customer’s special index requirements | |||||||
